System and Components

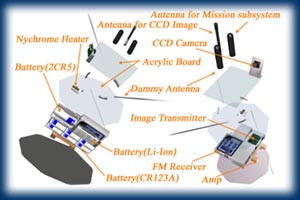

  The following figure shows components deployment mechanism. Deployment mechanism system is composed of dummy antenna, Nychrome heater, control circuit, battery, transceiver, and CCD image transmitter system to check an antenna deployment.

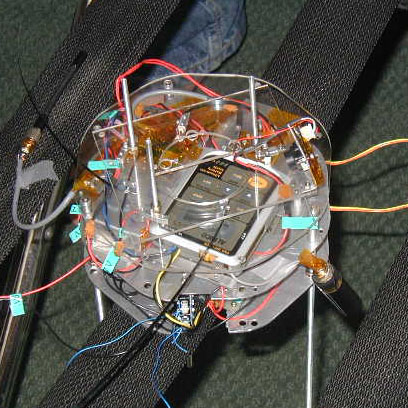

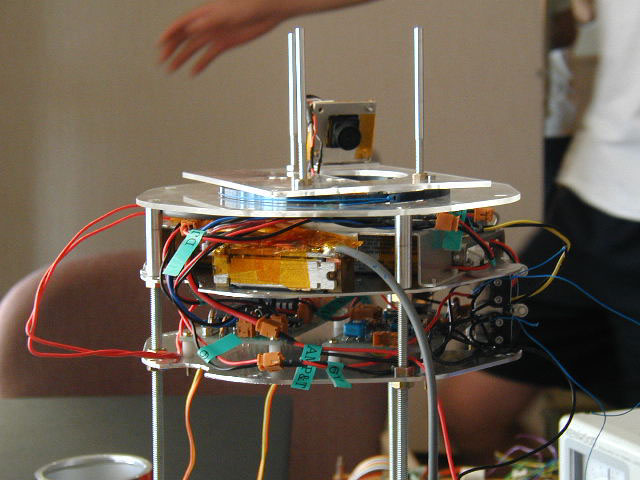

The following pictures are system components of deployment mechanism.

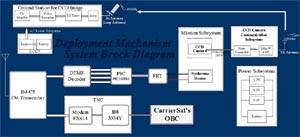

  The following figure shows a system brock diagram of operating deployment mechanism.
Deployment mechanism system receives uplink command by tranceiver(DJ-C5) and OBC control Nychrome heater. Moreover CarrireSat has CCD camera to check antenna deployment, CCD image transmitter system is composed of CCD camera, transmitter, amplifier(1.6W) and battery (6.0V/1300mAh for CCD Camera, 9.0V/2600mAh for transmitter and amplifier).
