ADCS

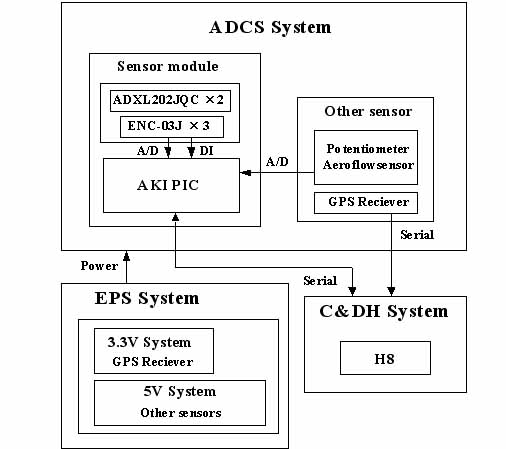

System Block Diagram

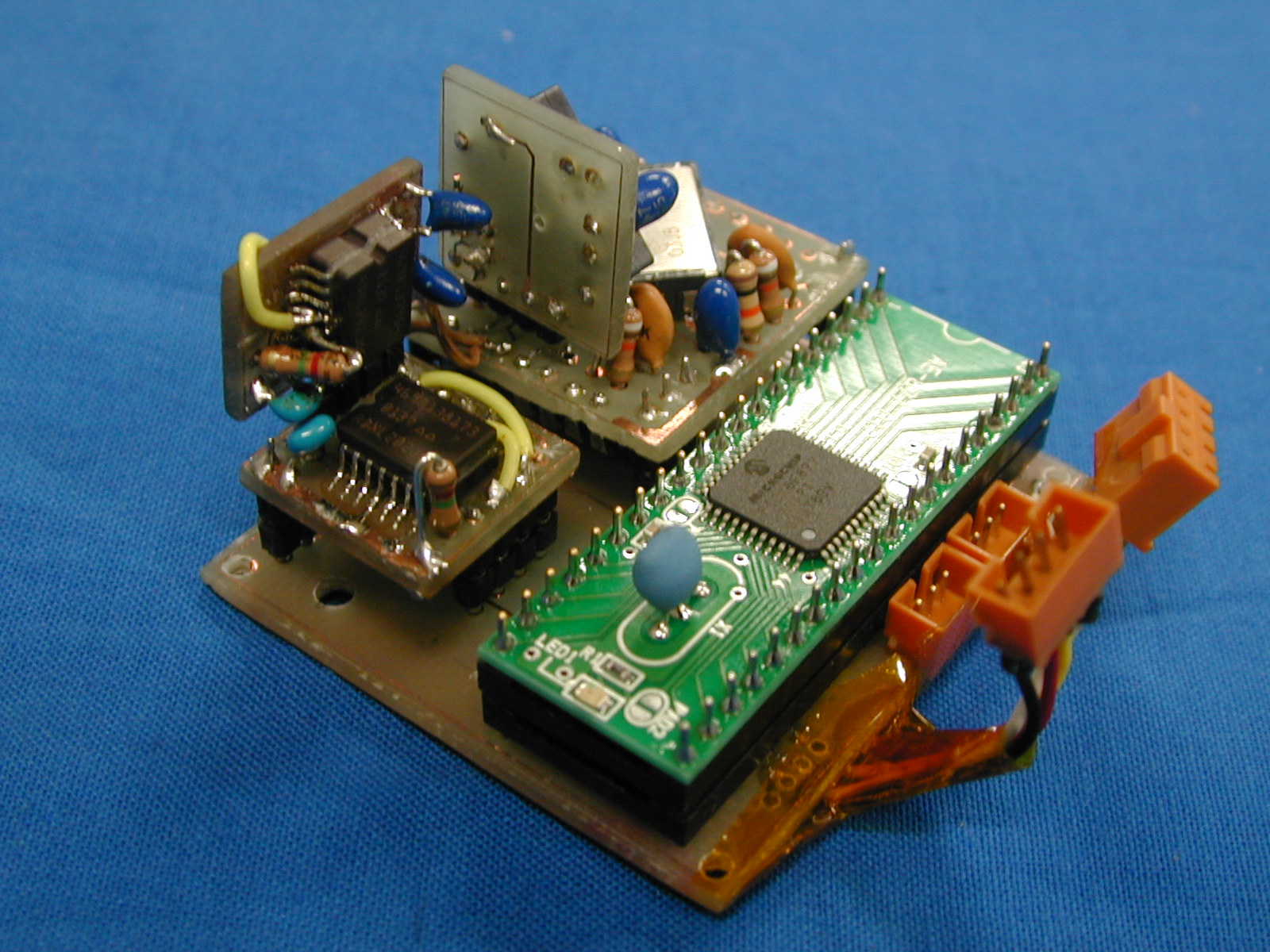

Sensor module
 |
 |
|
ENC03JA
|
ADXL202JQC
|
 |
|

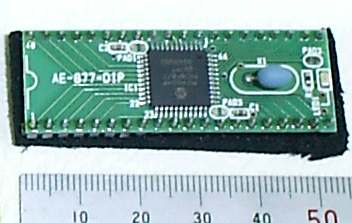

PIC16F877
|
Anemometer
 |
Anemometer
|
F6201-1
|
|
Measuring Range
|
0
to 20 m/s
|
|
|
Operating
Temperature
|
0
to 50 degrees Celsius
|
|
|
Operating
Voltage
|
12V
|
|
|
Current
|
60mA |

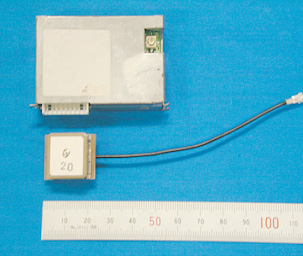

GPS Receiver Specification
 |
item
|
unit
|
specifications
|
|
Receiving
frequency
|
MHz
|
1575.42
|
|
|
Tracking
code
|
|
C/A
code
|
|
|
Receiving channel,Receiving way |
12ch,
parallel
|
||
|
Maximum
tracking satellite number
|
12
|
||
|
Communication
channel
|
1ch input, 1ch output,Start-stop synchronous serial |
||
|
Clock
|
MHz
|
11.605
|
|
|
UTC
synchronous pulse output
|
second
pulse
|
1
|
|
|
Maximum
input voltage
|
V
|
6.5
|

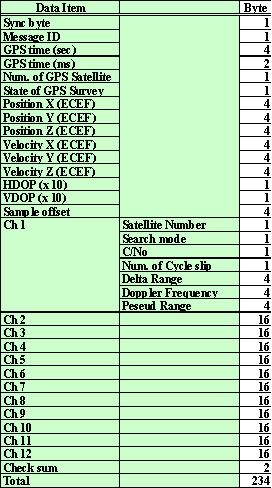

GPS Receiver Output data format
