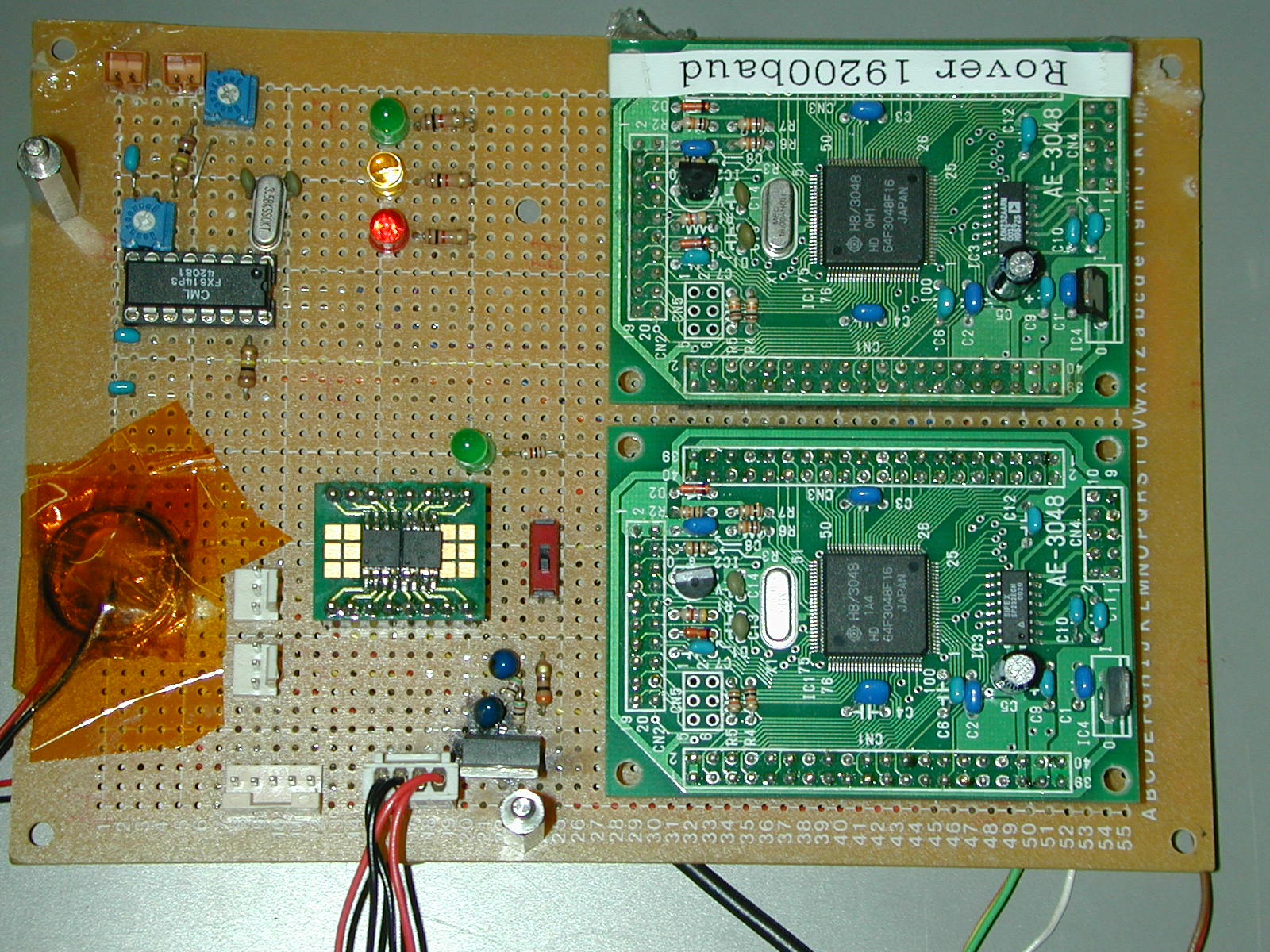

C&DH SubSystem


@

The main CPU is H8. The H8 communicates with the H8 of communication.
The memory capacity of 24LC515 is 64Kbyte. And C&DH has two 24LC515,
that means total memory capacity is 128kbyte. C&DH memories the GPSdata
of Rover and target every 6sec. It means that Rover can memory for about one
hour.

@

System Overview

24LC515
Mode switch
AKI-H8

@

@
