Welcome! CUTE-I developed at Matunaga Laboratory Tokyo Institute of Technology have two indipendent transmitter, CW and FM. Normally, CW will send data from space anytime and FM will be sent only when there was a command for it from Titech ground station.

For schedule of CW and FM at each pass, please see the following page.

#link to operation schedule

This page will introduce following things to receive data from CUTE-I.
*Radio Frequency
*CUTE-I's Transmitter
*Ground Station facility
*Titech's anntena facility
*Sound example(.wav)

For format of CW and FM, please jump to CWpage,FWpage

Titech's ground station is operating CUTE-I by following facility.(NOTE: this is just an example for receiving and does not mean that you must present this system to acquire data from CUTE-I)

*430MHz band antenna. (better if it is possible to control the elevation and azimuth)
*Amature radio tranceiver
*TNC with AX.25 decoder

If you successed to reveive data, we really appriciate if you can send information about your receiving equipment. We would like to open your equipment setting to other people by web and make easy receiving environment for CUTE-I.

#link to iReceived

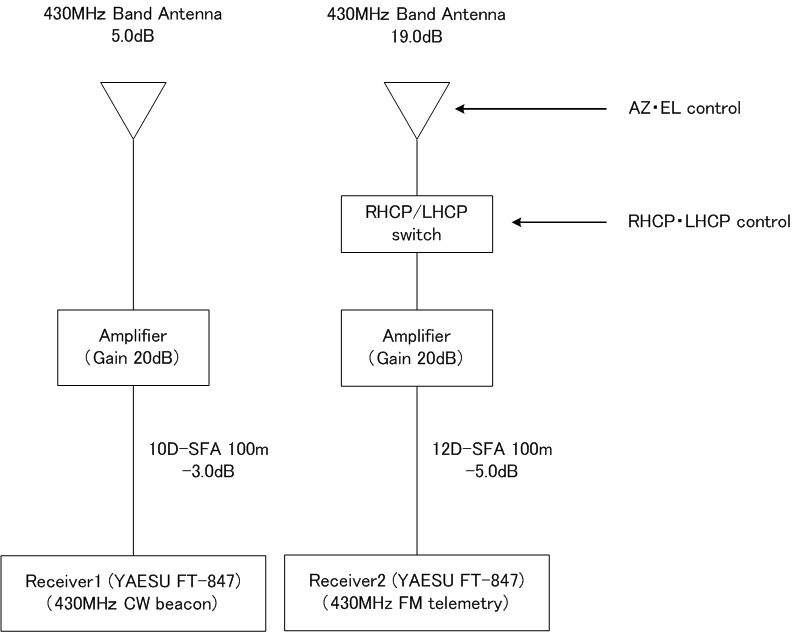

5 Titech's Antenna Facility

Titech's ground station is using following antenna system to receive data.

This is just an example of anttena-receiver system. There are many other compositions for above system.

By clicking following botton, you will be able to download sample sound of CUTE-I telemetry.

NOTE: If you had trouble with downloading, please click rigt mouse botton and choose "saving file".
