Top Subsystems APD (Science Module)

What is APD module？

APDs are the only semi-conductor devices which have internal gain. APDs can work as excellent light sensor for various fields of experimental physics

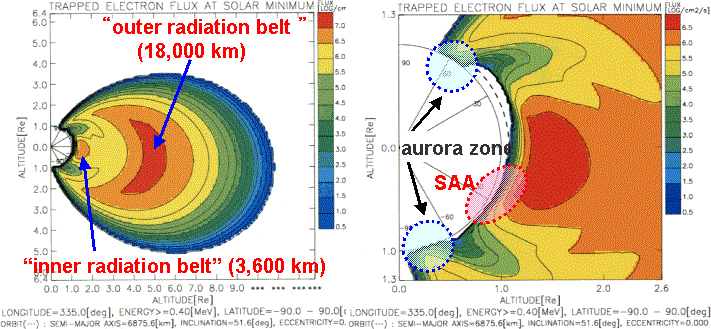

We have a plan to use APDs for the X-ray/gamma-ray observation satellite NeXT, which is a planned Japanese satellite which could be launched as early as 2011. In Cute-1.7 we will monitor charged particles flux in low-Earth orbit to estimate the total dose and possible radiation damage over expected 1 year mission life. Thanks to their internal gain and fast timing response, we can study the distribution of low-energy (E<10 keV) electrons and protons trapped in the South Atlantic Anomaly (SAA) and the aurora band.

missions

• performance demonstration of APD in space
• particle monitoring of low-energy (E<10 keV) electrons and protons trapped in the South Atlantic Anomaly (SAA) and the aurora band

APD (Avalanche Photo-Diodes)

Reverse-type APDs（S8664-55）are adopted for performance demonstration in space. We have a plan to use reverse-type APDs for the X-ray/gamma-ray observation satellite.

APD (Avalanche Photo-Diodes)

computer

H8 microcomputer (H8-3048F)

The flight model of APD module

The flight model of APD module
